Total 4 Records |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Images | Module Name | Brand | Touch Panel | Aspect Ratio | Contrast Ratio | Tech Type | Resolution | Active Area(mm) | Luminance (nits) |
NTSC | Viewing Angle | Interface | ||
8"
 |
|

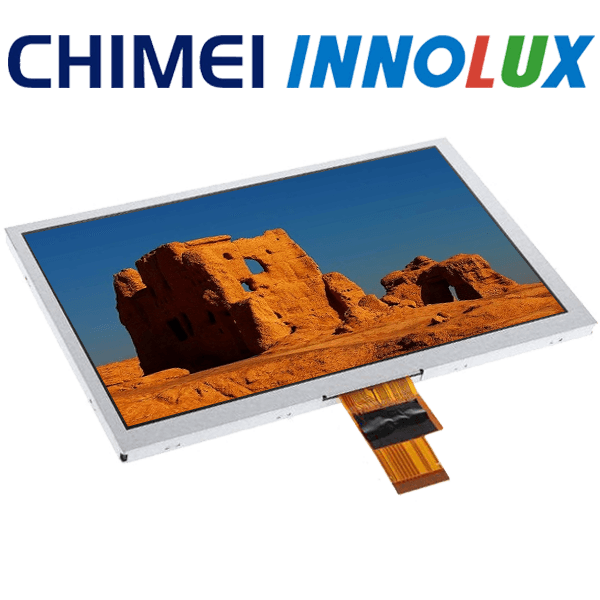

ZJ080NA-08A | CHIMEI-INNOLUX | Optional | 16:9 | 700 | TFT | 1024*3(RGB)*600 | 176.64 x 99.36 | 500 | 70% | 70/75/75/75 | 40pin FPC, LVDS | ||
|
8"
|
|

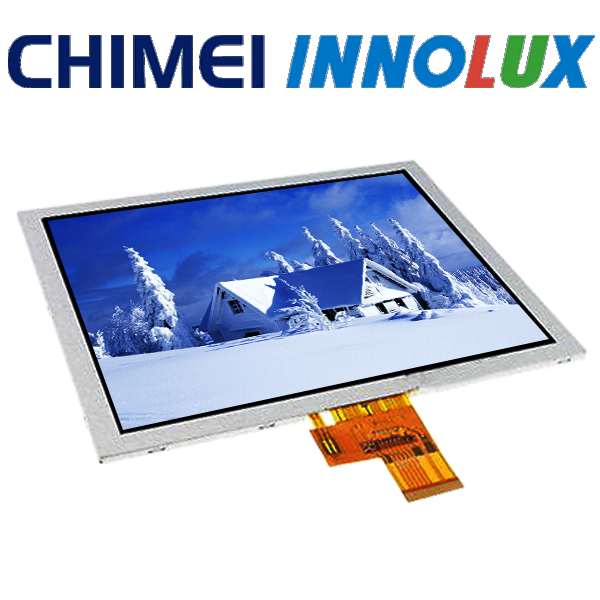

EJ080NA-05B | CHIMEI-INNOLUX | Optional | 4:3 | 500 | TFT | 800*3(RGB)*600 | 162 x 121.5 | 250 | 50% | 50/70/70/70 | 50pin FPC, Parallel 24bit RGB | ||
|
8"
|
|

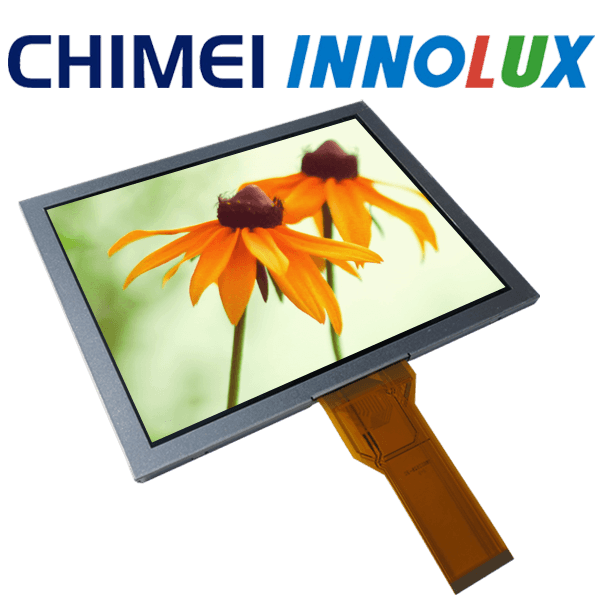

AT080TN64 | CHIMEI-INNOLUX | Optional | 16:9 | 500 | TFT | 1024*3(RGB)*600 | 176.64 x 99.36 | 450 | 50% | 50/70/70/70 | 50pin FPC, Parallel 24bit RGB | ||
|
8"
|
|
EJ080NA-04C | CHIMEI-INNOLUX | Optional | 4:3 | 700:1 | TFT | 1024*3(RGB)*768 | 162.048 x 121.536 | 250 | 50% | 75/75/75/75 | 40pin FPC, LVDS | ||
Total 4 Records |
|||||||||||||||
