EJ080NA-04C
MOQ: ≥ 10pcs
Lead Time: 3 working days FCA Hongkong after receiving PO
Payment: T/T, Paypal, West Union
Warranty: 1year
Lead Time: 3 working days FCA Hongkong after receiving PO
Payment: T/T, Paypal, West Union
Warranty: 1year

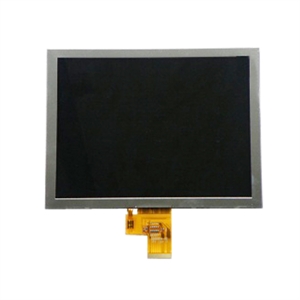

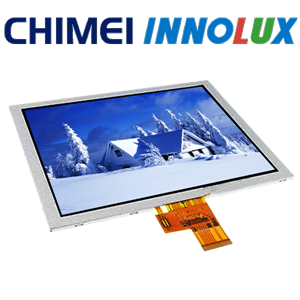

Chi mei InnoLux TFT LCD panel display EJ080NA-04C module parameter:
|
Product Name: |
EJ080NA-04C |
|
Touch Panel: |
Optional |
|
Screen Size: |
8.0" |
|
Aspect Ratio: |
4:3 |
|
Display Mode: |
Transmissive |
|
Resolution: |
1024X3(RGB)X768 |
|
PPI ( Pixel per inch ): |
160 |
|
Module/Panel Size(mm): |
183.0 x 141.0 x 3.4 |
|
Active Area(mm): |
162.048 x 121.536 |
|
Dot Pitch(mm): |
- |
|
Surface Treatment: |
Hard coating |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
75/75/75/75 |
|
Viewing direction: |
4：30 O'Clock |
|
NTSC: |
50% |
|
Luminance(nits): |
250 |
|
Contrast Ratio: |
700:1 |
|
Response Time(ms): |
6/14 (Typ.)(Tr/Td) |
|
Consumption (W)- Total: |
2.046 |
|
Color Depth: |
262K/16.7M |
|
Weight (g): |
TBD |
|
Interface: |
40pin FPC LVDS(1 ch,6/8-bit) |
|
Operation Temperature( ℃): |
-10~50 |
|
Storage Temperature (℃): |
-20~60 |
|
Lamp Type: |
White LED backlight Display |
Wholesale InnoLux EJ080NA-04C display TFT-LCD from China
Searching InnoLux EJ080NA-04C display tft-lcd at a reasonable price? This page includes a rich selection of InnoLux EJ080NA-04C display tft-lcd! We’ve also got InnoLux EJ080NA-04C display panel. You can shop wholesale InnoLux EJ080NA-04C display tft-lcd panel from Chinese InnoLux EJ080NA-04C display tft-lcd wholesalers with high quality and low prices. Our online wholesalers often offer special discounts and sales like InnoLux EJ080NA-04C display tft-lcd. If you want quotation or more details, please send Email to:
