G121I1-L01
MOQ: ≥ 10 pcs
Lead Time: 3 working days FCA Hongkong after receiving payment.
Payment: T/T, Paypal, West Union
Warranty: 1 year

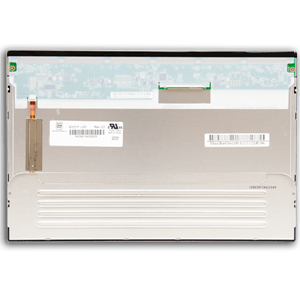

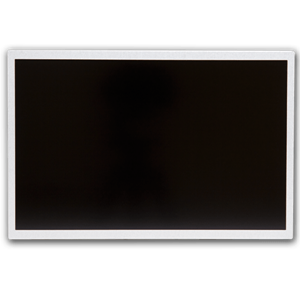

Chimei Innolux TFT LCD panel display G121I1-L01 module parameter:
|
Panel Name: |
G121I1-L01 |
|
Touch screen: |
Optional Touch panel |
|
Screen Size: |
12.1" inch |
|
Aspect Ratio: |
16:10 |
|
Display Mode: |
Transmissive |
|
Display Resolution: |
1280x800 |
|
PPI ( Pixel per inch ): |
124 |
|
Module/Panel Size(mm): |
278x184x10.5 |
|

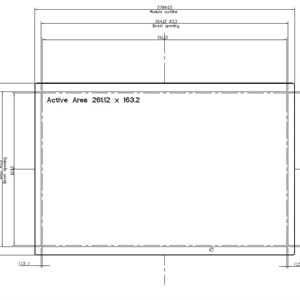

Active Area(mm): |
261.12x163.20 |
|
Dot Pitch(mm): |
0.204x0.204 |
|
Surface Treatment: |
Antiglare, Hard coating (3H) |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
88/88/88/88 |
|
Viewing direction: |
-- |
|
NTSC: |
-- |
|
Luminance(nits): |
400 |
|
Contrast Ratio: |
1000:1 |
|
Response Time(ms): |
15/10 (Typ.)(Tr/Tf) |
|
Consumption (W)- Panel: |
1.65 |
|
Consumption (W)- Backlight: |
8.5 |
|
Module Weight (g): |
455 |
|
Interface: |
30pins,LVDS (1 ch, 6/8-bit) |
|
Operation Temperature( ℃): |
-10~70 |
|
Storage Temperature (℃): |
-20~80 |
|
Lamp Type: |
White LED backlight display |
|
Applications: |
Industry |
|
Color Depth: |
262K/16.2M (6-bit / 6-bit + FRC) |
|
Backlight Life(Min. Hours): |
50K |
Wholesale InnoLux G121I1-L01 display TFT-LCD from China
Searching InnoLux G121I1-L01 display tft-lcd at a reasonable price? This page includes a rich selection of InnoLux G121I1-L01 display tft-lcd! We’ve also got InnoLux G121I1-L01 display panel. You can shop wholesale InnoLux G121I1-L01 display tft-lcd panel from Chinese InnoLux G121I1-L01 display tft-lcd wholesalers with high quality and low prices. Our online wholesalers often offer special discounts and sales like InnoLux G121I1-L01 display tft-lcd. If you want quotation or more details, please send Email to:
sales@tekswo-display.com
