ZJ080NA-08A
MOQ: ≥ 10 pcs
Lead Time: 3 working days FOB Hongkong after receiving payment.
Payment: T/T, Paypal, West Union
Warranty: 1 year

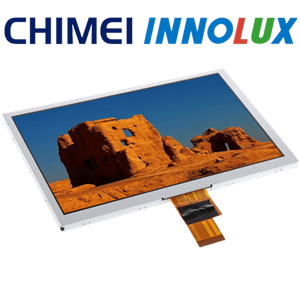

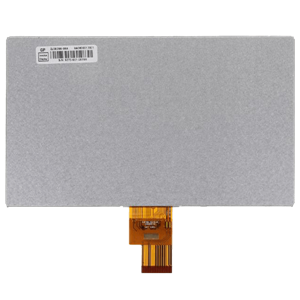

8.0" inch Chimei Innolux TFT LCD Display ZJ080NA-08A panel Parameter:
|
Product Name: |
ZJ080NA-08A |
|
Touch Panel: |
Optional |
|
Screen Size: |
8.0" |
|
Aspect Ratio: |
16:9 |
|
Display Mode: |
Transmissive |
|
Resolution: |
1024 x 3(RGB) x 600 |
|
PPI ( Pixel per inch ): |
148 |
|

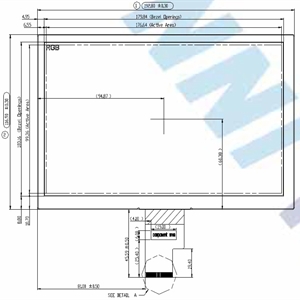

Module/Panel Size(mm): |
192.8 x 116.9 x 6.4 |
|
Active Area(mm): |
176.64 x 99.36 |
|
Dot Pitch(mm): |
0.1725(W) x 0.1656(H) |
|
Surface Treatment: |
Plain |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
70/75/75/75 |
|
Viewing direction: |
6 O'Clock |
|
NTSC: |
70% |
|
Luminance(nits): |
500 |
|
Contrast Ratio: |
700:1 |
|
Response Time(ms): |
10/20 (Typ.)(Tr/Td) |
|
Consumption (W)- Panel: |
TBD |
|
Consumption (W)- Backlight: |
3.56 |
|
Weight (g): |
TBD |
|
Interface: |
40pin FPC,LVDS |
|
Operation Temperature( ℃): |
-20~80 |
|
Storage Temperature (℃): |
-30~80 |
|
Lamp Type: |
White LED backlight Display |
Wholesale InnoLux ZJ080NA-08A display TFT-LCD from China
Searching InnoLux ZJ080NA-08A display tft-lcd at a reasonable price? This page includes a rich selection of InnoLux ZJ080NA-08A display tft-lcd! We’ve also got InnoLux ZJ080NA-08A display panel. You can shop wholesale InnoLux ZJ080NA-08A display tft-lcd panel from Chinese InnoLux ZJ080NA-08A display tft-lcd wholesalers with high quality and low prices. Our online wholesalers often offer special discounts and sales like InnoLux ZJ080NA-08A display tft-lcd. If you want quotation or more details, please send Email to:
