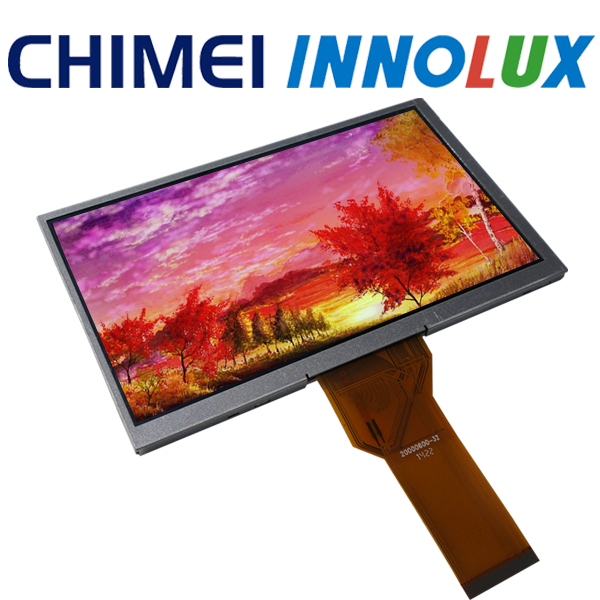

TEKSWO is first-class distributor of Chimei Innolux Taiwan, supplying AT070TN94 TFT LCD panel with A grade and aggressive price.
Inquiry: sales@tekswo-display.com
-See more Innolux TFT LCD panels on sale
Specification:
|
Product Name: |
AT070TN94 |
|
Touch Panel: |
No |
|
Screen Size: |
7" |
|
Aspect Ratio: |
16:9 |
|
Display Mode: |
Transmissive |
|
Resolution: |
800X3(RGB)X480 |
|
PPI ( Pixel per inch ): |
137 |
|
Module/Panel Size(mm): |
164.9 x 100.0 x 5.7 |
|
Active Area(mm): |
154.08 x 85.92 |
|
Dot Pitch(mm): |
0.0642(W) X 0.1790(H) |
|
Surface Treatment: |
Anti-Glare |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
50/70/70/70 |
|
Viewing direction: |
6 O'Clock |
|
NTSC: |
50% |
|
Luminance(nits): |
400 |
|
Contrast Ratio: |
500 |
|
Response Time(ms): |
25 |
|
Consumption (W)- Panel: |
0.226 |
|
Consumption (W)- Backlight: |
1.674 |
|
Weight (g): |
150.0 |
|
Interface: |
50pin FPC,Parallel 24bit RGB |
|
Operation Temperature( ℃): |
-30~85 |
|
Storage Temperature (℃): |
-30~85 |
|
HTHH.(op): |
60℃,90% RH |
