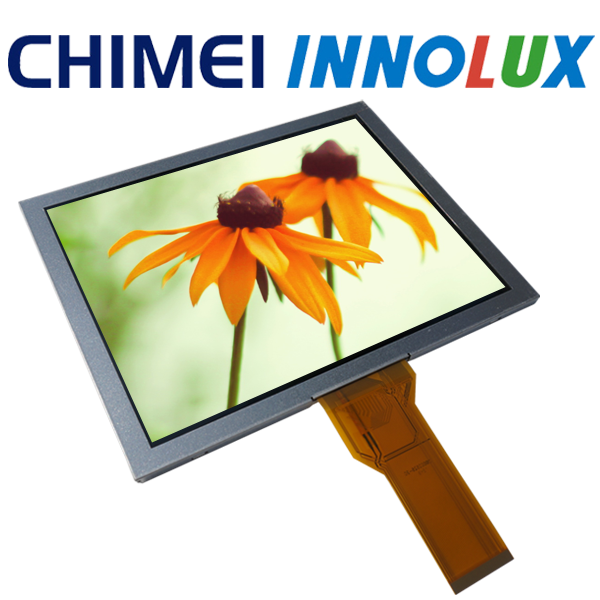

TEKSWO is first-class distributor of Chimei Innolux Taiwan, supplying EJ080NA-05B TFT LCD panel with A grade and aggressive price.
Inquiry: sales@tekswo-display.com
-See more Innolux TFT LCD panels on sale
Specification:
|
Product Name: |
EJ080NA-05B |
|
Touch Panel: |
No |
|
Screen Size: |
8" |
|
Aspect Ratio: |
4:3 |
|
Display Mode: |
Transmissive |
|
Resolution: |
800 X 3(RGB) X 600 |
|
PPI ( Pixel per inch ): |
125 |
|
Module/Panel Size(mm): |
183.0 x 141.0 x 5.6 |
|
Active Area(mm): |
162 x 121.5 |
|
Dot Pitch(mm): |
0.0675(W)X0.2025(H) |
|
Surface Treatment: |
Anti-Glare |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
50/70/70/70 |
|
Viewing direction: |
6 O'Clock |
|
NTSC: |
50% |
|
Luminance(nits): |
250 |
|
Contrast Ratio: |
500 |
|
Response Time(ms): |
25 |
|
Consumption (W)- Panel: |
0.356 |
|
Consumption (W)- Backlight: |
1.674 |
|
Weight (g): |
254.0 |
|
Interface: |
50pin FPC,Parallel 24bit RGB |
|
Operation Temperature( ℃): |
-20~70 |
|
Storage Temperature (℃): |
-30~850 |
|
HTHH.(op) |
40℃,90% RH |
