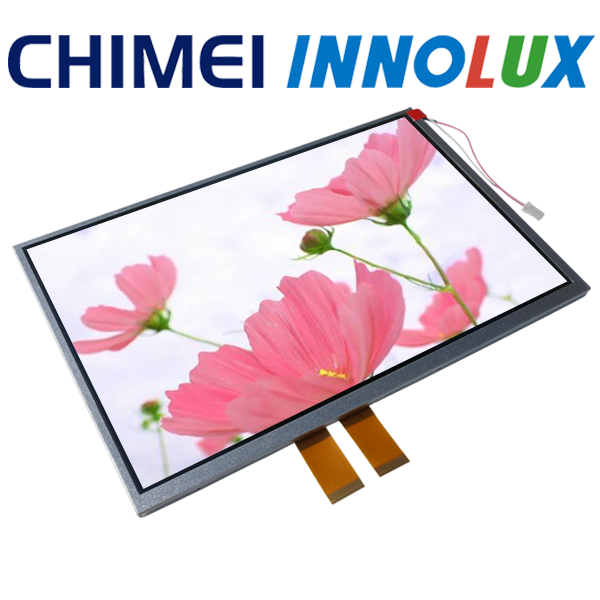

TEKSWO is first-class distributor of Chimei Innolux Taiwan. Supply AT102TN03 V.8 TFT LCD panel with A grade and aggressive price.
Free Inquiry: sales@tekswo-display.com .
-See more Innolux TFT LCD panels on sale
Specification:
|
Product Name: |
AT102TN03 V.8 |
|
Touch Panel: |
No |
|
Screen Size: |
10.2” |
|
Aspect Ratio: |
15:9 |
|
Display Mode: |
Transmissive |
|
Resolution: |
800 X 3(RGB) X 480 |
|
PPI ( Pixel per inch ): |
92 |
|
Module/Panel Size(mm): |
235.0 X145.8 X6.1 |
|
Active Area(mm): |
222.0 X 132.48 |
|
Dot Pitch(mm): |
0.0925(W) X 0.276(H) |
|
Surface Treatment: |
Anti-Glare |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
45/65/65/65 |
|
Viewing direction: |
6 O'Clock |
|
NTSC: |
50% |
|
Luminance(nits): |
350 |
|
Contrast Ratio: |
300 |
|
Response Time(ms): |
35 |
|
Consumption (W)- Panel: |
0.250 |
|
Consumption (W)- Backlight: |
1.860 |
|
Weight (g): |
332.0 |
|
Interface: |
60pin FPC,Parallel 18bit RGB |
|
Operation Temperature( ℃): |
-30~85 |
|
Storage Temperature (℃): |
-30~85 |
|
HTHH.(op): |
60℃,90% RH |
