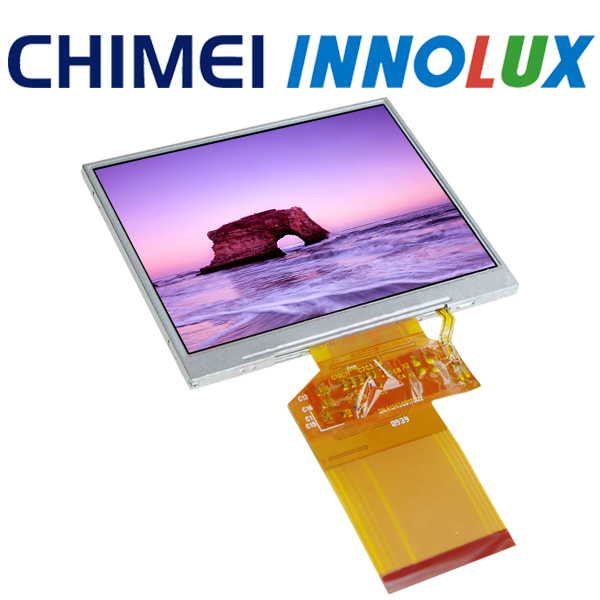

TEKSWO China is first-class Chimei Innolux distributor, supplying LQ035NC111 TFT LCD display with A grade and aggressive price.
Free Inquiry by Email: sales@tekswo-display.com
-See more Innolux TFT LCD displays on sale
Specification:
|
Product Name: |
LQ035NC111 |
|
Touch Panel: |
No |
|
Screen Size: |
3.5" |
|
Aspect Ratio: |
4:3 |
|
Display Mode: |
Transmissive |
|
Resolution: |
320X3(RGB)X240 |
|
PPI ( Pixel per inch ): |
115 |
|
Module/Panel Size(mm): |
76.9 x 63.9 x 3.3 |
|
Active Area(mm): |
73.03 x 55.50 |
|
Dot Pitch(mm): |
0.073(W) X 0.219(H) |
|
Surface Treatment: |
Anti-Glare |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
60/60/50/55 |
|
Viewing direction: |
6 O'Clock |
|
NTSC: |
60% |
|
Luminance(nits): |
250 |
|
Contrast Ratio: |
400:1 |
|
Response Time(ms): |
15 |
|
Consumption (W)- Panel: |
0.050 |
|
Consumption (W)- Backlight: |
0.400 |
|
Weight (g): |
40.0 |
|
Interface: |
54pin FPC,Digital 24-bit RGB |
|
Operation Temperature( ℃): |
-20~70 |
|
Storage Temperature (℃): |
-30~80 |
|
HTHH.(op): |
60℃,90% RH |
