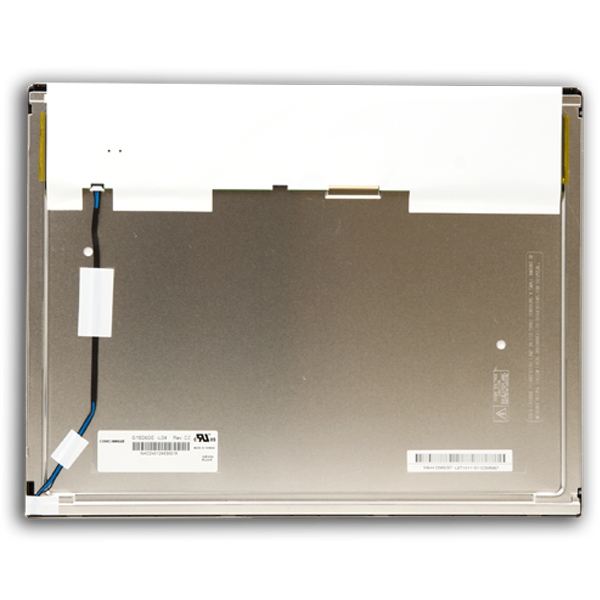

TEKSWO China is first-class Chimei Innolux distributor, supplying G150XGE-L04 TFT LCD display with A grade and aggressive price.
Free Inquiry by Email: sales@tekswo-display.com
-See more Innolux TFT LCD displays on sale
Specification:
|
Product Name: |
G150XGE-L04 |
|
Touch Panel: |
No |
|
Screen Size: |
15.0" |
|
Aspect Ratio: |
4:3 |
|
Display Mode: |
Transmissive |
|
Resolution: |
1024×768 |
|
PPI ( Pixel per inch ): |
85 |
|
Module/Panel Size(mm): |
326.5×253.5×12 |
|
Active Area(mm): |
304.1×228.1 |
|
Dot Pitch(mm): |
0.297(W) X0.297(H) |
|
Surface Treatment: |
Antiglare(Haze25%), Hard coating (3H) |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
70/70/80/80 |
|
Viewing direction: |
6 O'Clock |
|
NTSC: |
-- |
|
Luminance(nits): |
400 |
|
Contrast Ratio: |
700:1 |
|
Response Time(ms): |
8/17 (Typ.)(Tr/Td) |
|
Consumption (W) Total: |
10.6 |
|
Weight (g): |
835.0 |
|
Interface: |
LVDS (1 ch, 6/8-bit) |
|
Operation Temperature( ℃): |
-30~80 |
|
Storage Temperature (℃): |
-40~85 |
